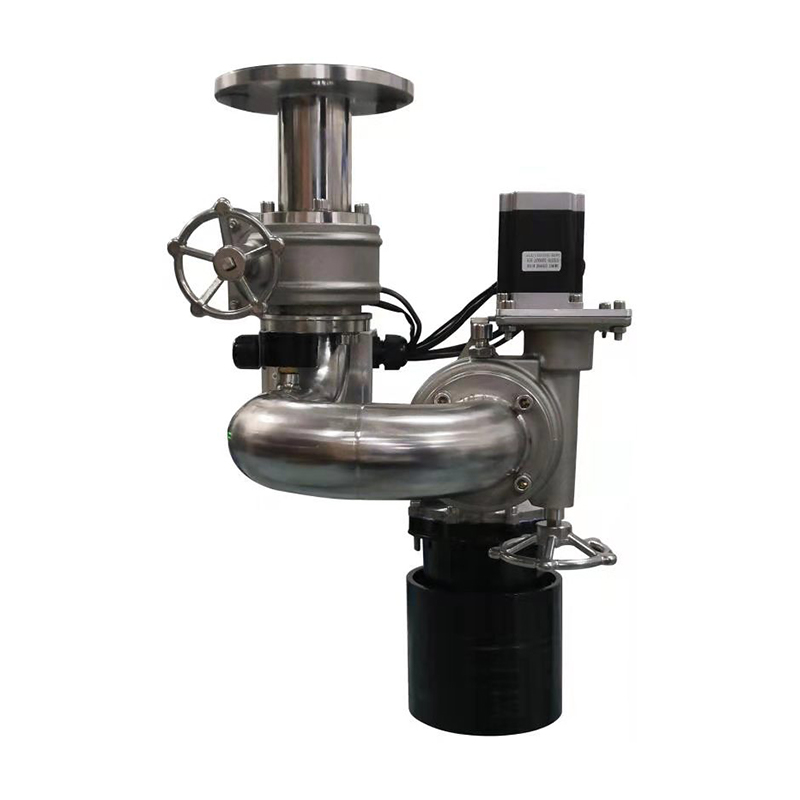

The latest type of LinkZone brand Fire Water Cannon adopts infrared guidance, built-in uncooled focal plane array infrared thermal imaging sensor, with real-time temperature measurement function. The core positioning technology is infrared thermal imaging sensor + real-time tracking technology. The temperature of each pixel can be calculated in real-time. Once the kindling point is found, it can be locked immediately, and the dynamic kindling point can be tracked in real-time. After intelligent analysis of the kindling point, it can locate and spray water within 30 seconds. It is safe, reliable, and convenient fire-fighting equipment.
InquiryThe mechanical part adopts a fully sealed structure and aerospace-grade lubricating oil, the circuit part is completely covered with three anti-paint to ensure the normal operation in various environments and effectively extend the lifetime of the Fire Water Cannon. The best protection radius of each set is 30-80m, the water injection flow is 20-80L / s, and the rated pressure is 0.8-1.2MPa.
Early-stage fire detection with the fast location of ignition point, automatic tracking of the fire source, automatic fire
extinguishing and spraying water after the location of the fire source.
The sensitivity of infrared thermal sensor is 0.1m at a protection radius of 30-55m.
When extinguishing it automatically corrects the stream elevation angle depending on the distance.
Working pressure: 0.8MPa
Flow rate: 20L/s
Protection radius: 40m
Jet radius: 45m
Working voltage: 85-242VAC
Power consumption: Locating: max 6 watts
Scanning: max. 18 watts
Positioning time: ≤ the 30s
Fire extinguishing time: ≤3 mins
Horizontal protection angle: 0-360°
Installation height: 8-15m
Scope of application: General purpose industrial buildings and structures, high occupancy places, large space building, for example, airports, railway stations, museums, industrial plants, large shopping malls, large warehouses, power plants, coal mines, colleges, and universities, etc
