Water Cannon is a fast-acting fire protection system used primarily to protect against rapid fire spread in high-risk areas. Due to their high intelligence and humanization, Fire Monitor typically replace deluge systems/sprinkler system in high-risk areas or areas with large space, though both systems can work together as well. Fire Monitor may also be used for helicopter deck protection and in other large spaces to strengthen fire protection of those areas. In addition to fire prevention, Fire Monitor can also be used for early warning and video monitoring
InquirySelf-adaption
Intelligent adaptation to
complex situations
Full seal
Long life of dust prevention
Easy operation
The Control Host controls
the Fire Monitor, which
can be used for video
monitoring at ordinary times

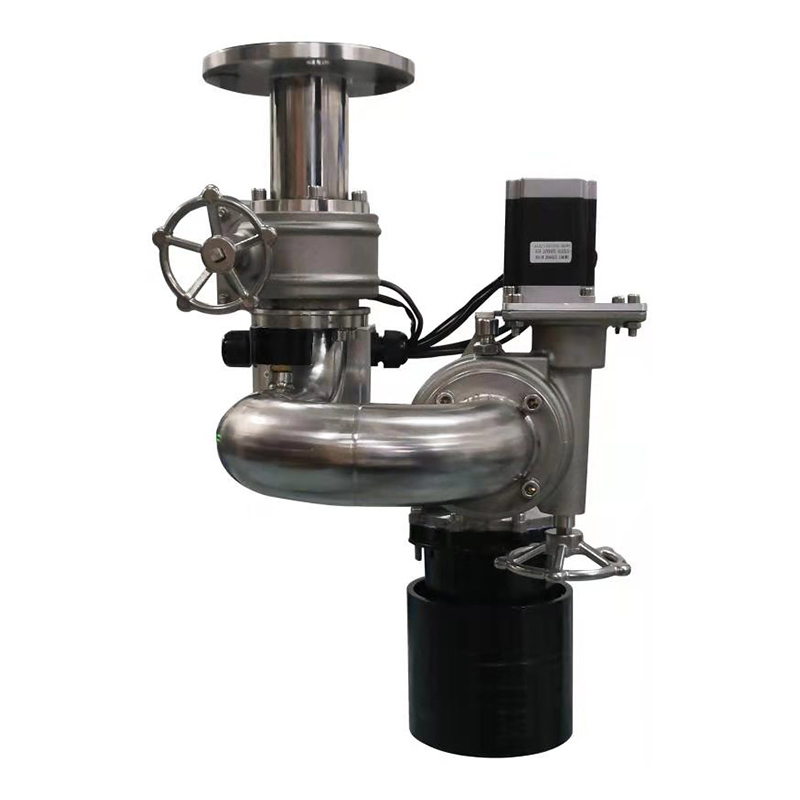

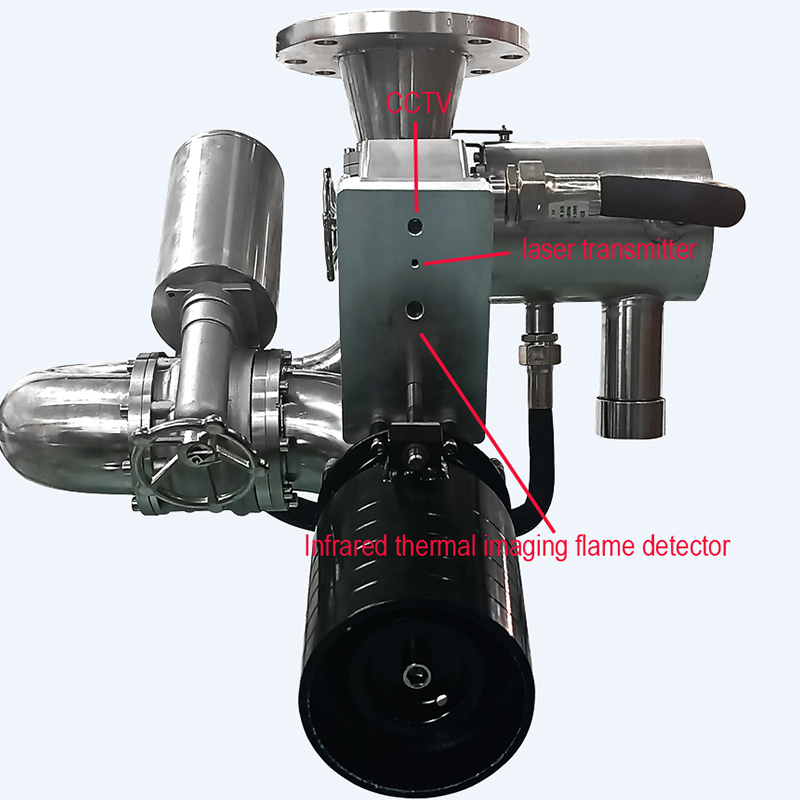

Parameters of fire monitor (ZDMS0.8/40S-LZII）
Working pressure: 0.8MPa
Flow rate: 40L/s
Protection radius: 48m
Jet radius: 54m
Working voltage: 85-242VAC
Power consumption: Locating: max 18 watts
Scanning: max. 30 watts
Positioning time: ≤ the 30s
Fire extinguishing time: ≤3 mins
Horizontal protection angle: 0-360°
Installation height: 8-15m
Scope of application: General purpose industrial buildings and structures, high occupancy places, large space building, for example, airports, railway stations, museums, industrial plants, large shopping malls, large warehouses, power plants, coal mines, colleges, and universities, etc
Mark of the automatic control part

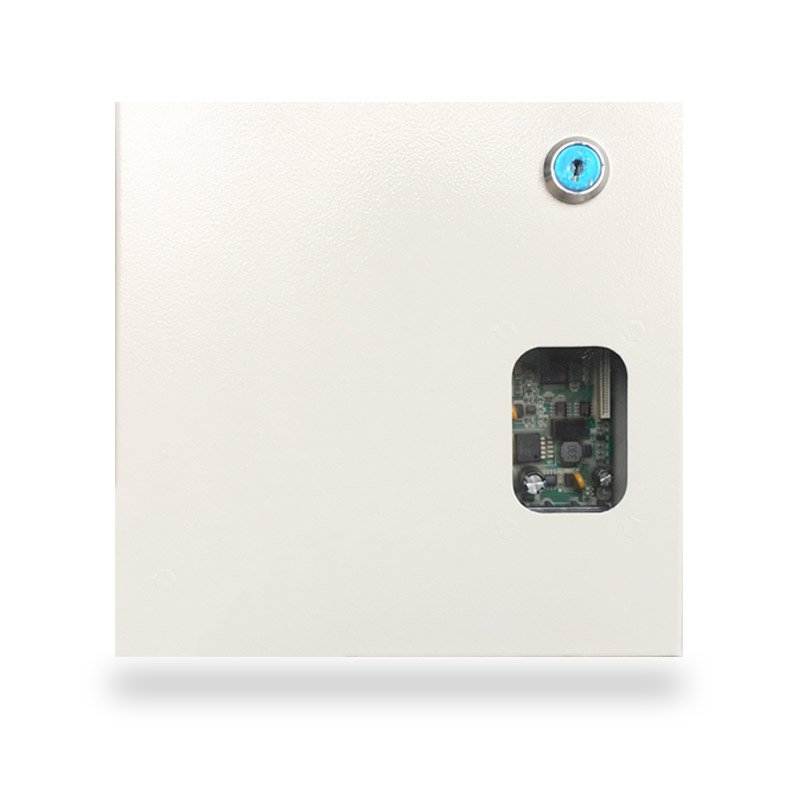

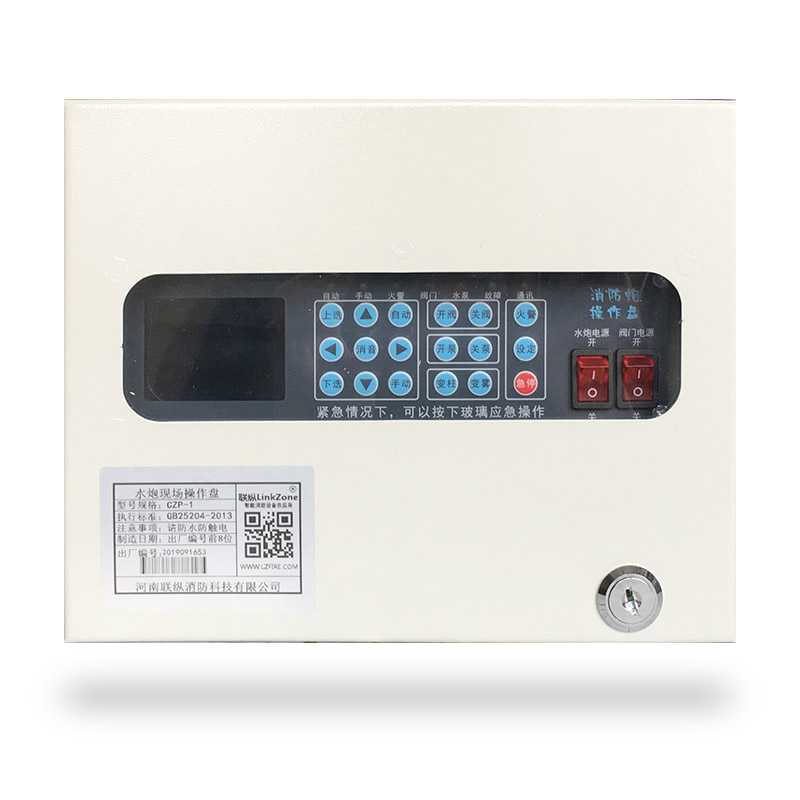

Product model: Control console: PJK, Field operation panel: CZP-1, Electric control box: DKX-1
