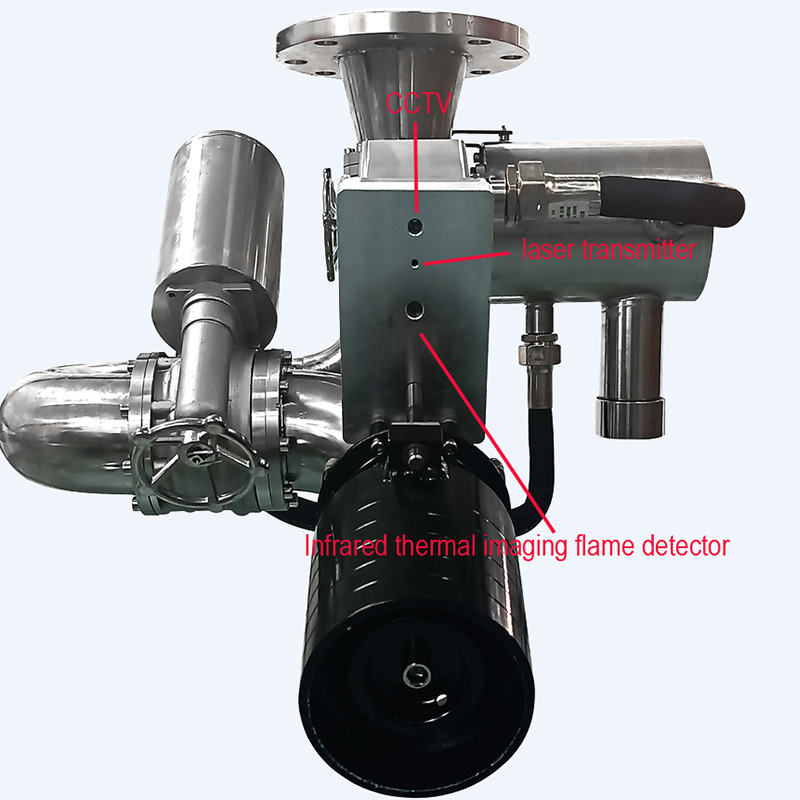

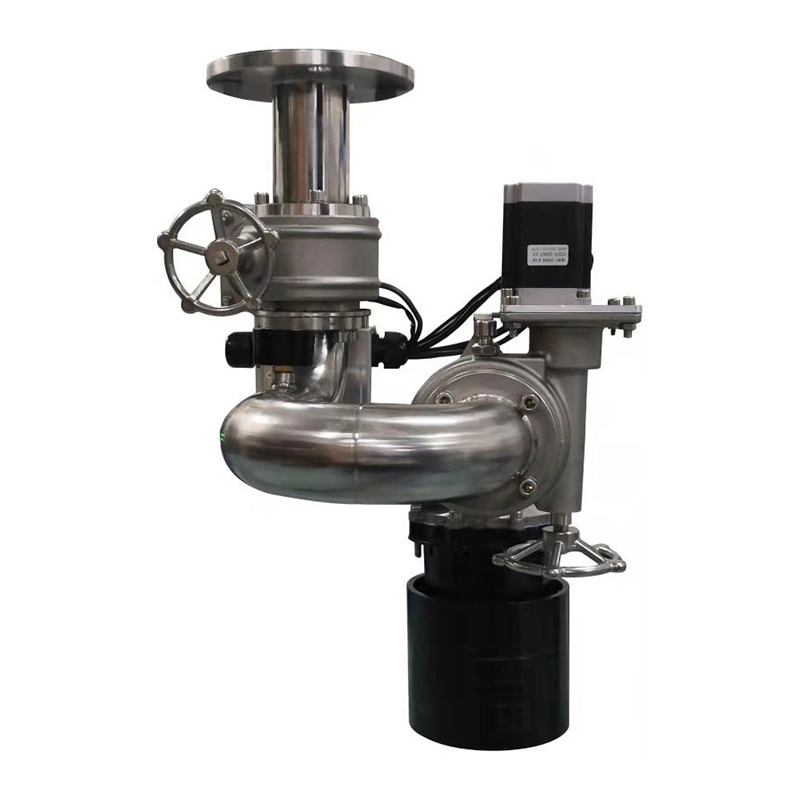

LinkZone brand Smart Fire Spray Nozzle for firefighting in large space buildings was developed and produced by Henan Linkzone Fire Technology Co., Ltd to meet the fire protection requirements of large, open spaces (atrium space) in modern buildings where a fire sprinkler system may be inadequate due to the height of the ceiling sprinklers above the atrium floor.
InquiryPosition error: Small error range

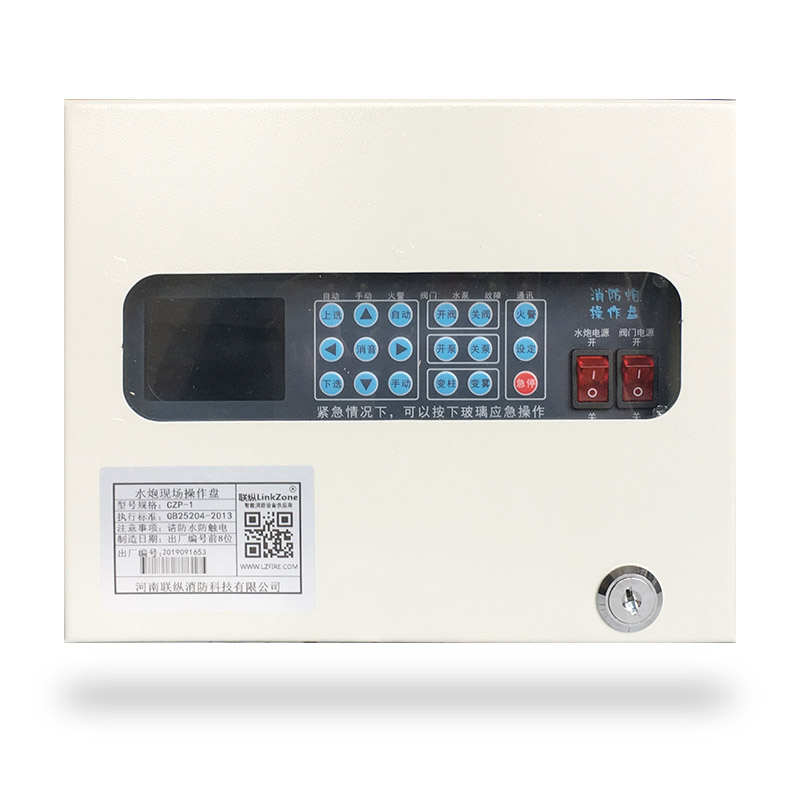

Operation mode: Color LCD touch screen
Linkage of the same area
water cannon: If one set is activated,
all the others will
activate linkage
Control system: Manual and automatic
conversion by time
interval, more humanized
Working pressure: 1.0MPa
Flow rate: 60L/s
Protection radius: 56m
Jet radius: 62m
Working voltage: 85-242VAC
Power consumption: Locating: max 18 watts
Scanning: max. 30 watts
Positioning time: ≤ the 30s
Fire extinguishing time: ≤3 mins
Horizontal protection angle: 0-360°
Installation height: 8-15m
Scope of application: General purpose industrial buildings and structures, high occupancy places, large space building, for example, airports, railway stations, museums, industrial plants, large shopping malls, large warehouses, power plants, coal mines, colleges, and universities, etc
